Tilting Air Floatation Table
- Series GH-FT-A is Made of Sturdy Welded Tubular Steel Structure Painted with Top Quality Varnish

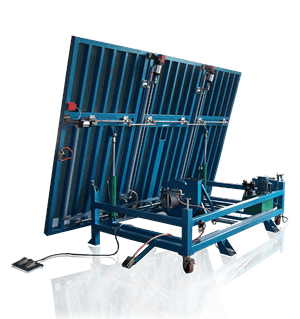

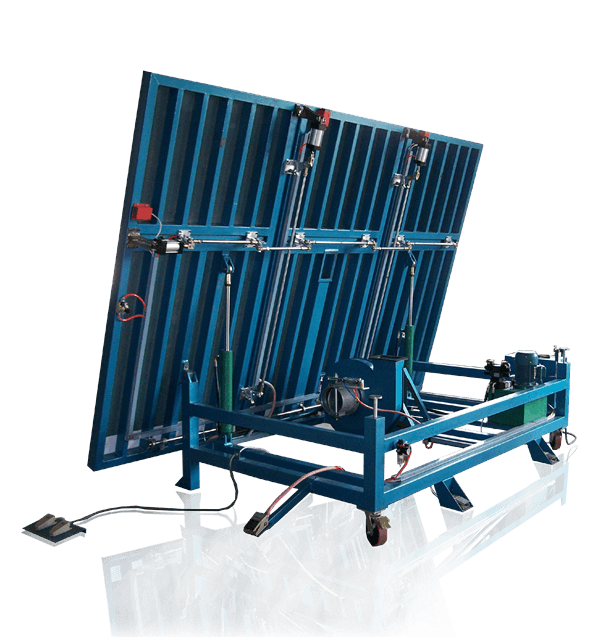

- Tilting Table with Strong Cylinders for Easy Loading & Unloading
- Shock Free Tilting Motions Especially When Approaching Horizontal Position
- Compact Air Blower Beneath Table
- Powerful Air Floatation Allowing Glass Moved Freely on Table
- Distortion Free Table Top

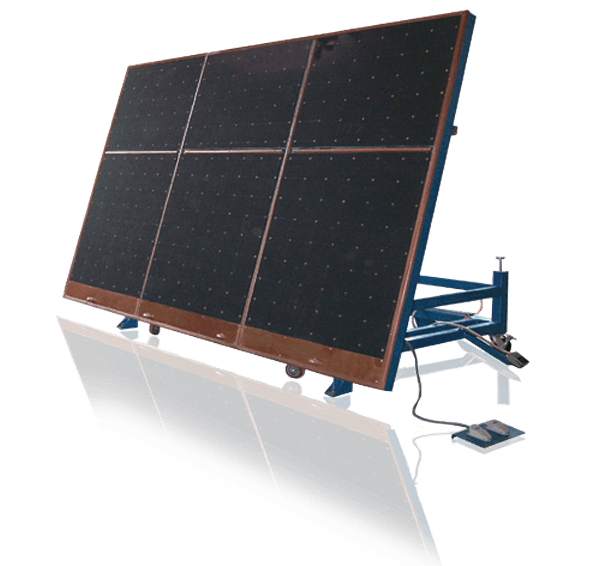

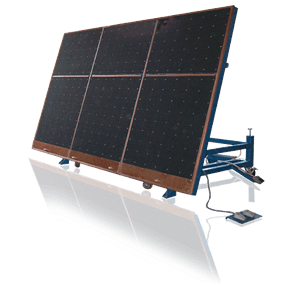

- Table Top Covered by Scratch Free Durable Thick Felt
- Robust Abrasive Proof Glass Support Stoppers
- Standard Tables Comes Without Break Out Bars
| Models | GH-FT-A-1020 | GH-FT-A-1525 | GH-FT-A-2030 | GH-FT-A-2537 | GH-FT-A-3361 |
| Max. Glass Size (mm) | 1000 x 2000 | 1500 x 2500 | 2000 x 3000 | 2500 x 3700 | 3300 x 6100 |
| Working Height(mm) | 900 | 900 | 900 | 900 | 900 |
| Max. Glass Loading (kg) | 100 | 160 | 300 | 400 | 900 |
| Tilting By | Pneumatic | Pneumatic | Hydraulic | Hydraulic | Hydraulic |
| Compress Air Consumption (Lt/min.) | 180 | 200 | 250 | 300 | 400 |
| Compress Air Pressure (MPa) | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 |
| Voltage | 380V / 3 Phase / 50Hz | ||||
| Power (KW) | 1.5 | 2 | 4 | 5.1 | 11.5 |
| Weight (kg) | 200 | 300 | 600 | 900 | 2000 |
| Outer Dimensions (LxWxH) (m) | 2.1 x 1 x 0.9 | 2.6 x 1.5 x 0.9 | 3.1 x 2 x 0.9 | 3.8 x 2.5 x 0.9 | 6.2 x 3.3 x 0.9 |
