Features & Specs
Elevated Glass Fusing Kiln (GFKF-CH-B)
- Chamber Type Compact Design Glass Fusing Kiln
- Metal Structure Painted With High Temperature Resistant Varnish
- Electric Motorized Elevated Top Cover
- Well Heat Preservation Thermal Insulation
- PLC Temperature Control
- Automatic Production Process From Heating, Fusing, Annealing Till Cooling
- Low Power Consumption While High Production Efficient

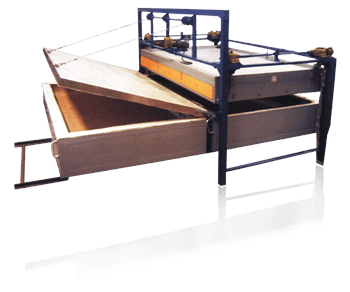

- Optional Extra Heating Chamber Running On Rail Tracks
- Extra Heating Chamber With Tilting Top Cover Put Right Next To Kiln
- Extra Chamber Runs On Rail Tracks To & Fro Fusing Kiln Greatly Increases Productivity
Models | GFKF-CH-B-1922 | GFKF-CH-A-1931 | GFKF-CH-A-1936 | GFKF-CH-A-1945 |
Internal Sizes (W x L) | 1900 x 2200 mm | 1900 x 3100 mm | 1900 x 3600 mm | 1900 x 4500 mm |
Internal Height | 200 mm | 200 mm | 200 mm | 200 mm |
Power | 38 KW | 52 KW | 65 KW | 80 KW |
Voltage | 380V / 3 Phase / 50Hz | 380V / 3 Phase / 50Hz | 380V / 3 Phase / 50Hz | 380V / 3 Phase / 50Hz |
Weight | 1900 kg | 2500 kg | 3500 kg | 4800 kg |
Outer Dimensions (W x L x H) |
2200 x 2500 x 1500 mm | 2200 x 3500 x 1500 mm | 2200 x 3900 x 1500 mm | 2200 x 5100 x 1500 mm |
