Glass Fusing Kilns

Features & Specs

Standard Glass Fusing Kiln (GFKF-CH-A)

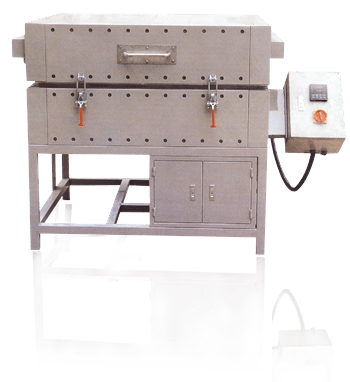

Standard Fuse Glass Kiln
  • Chamber Type Compact Design Glass Fusing Kiln
  • Metal Structure Painted With High Temperature Resistant Varnish
  • Top Tilting Cover Activated By Pneumatic Cylinders
  • Well Heat Preservation Thermal Insulation
  • PLC Temperature Control
  • Automatic Production Process From Heating, Fusing, Annealing Till Cooling
  • Low Power Consumption While High Production Efficient
Models GFKF-CH-A-0810 GFKF-CH-A-1015 GFKF-CH-A-1024 GFKF-CH-A-1220 GFKF-CH-A-1224 GFKF-CH-A-1518 GFKF-CH-A-1724
Internal Sizes (W x L) 870 x 1070 mm 1070 x 1570 mm 1070 x 2470 mm 1290 x 2070 mm 1290 x 2470 mm 1500 x 1800 mm 1740 x 2470 mm
Internal Height 200 mm 200 mm 200 mm 200 mm 200 mm 200 mm 200 mm
Power 9 KW 16 KW 30 KW 24 KW 35 KW 27 KW 43 KW
Voltage 380V / 3 Phase / 50Hz
Weight 500 kg 1350 kg 1750 kg 1700 kg 1800 kg 1800 kg 2000 kg
Outer Dimensions
(W x L x H)		 1180 x 1450 x 1270 mm 1380 x 1950 x 1270 mm 1380 x 2850 x 1270 mm 1600 x 2450 x 1270 mm 1600 x 2850 x 1270 mm 1810 x 2180 x 1270 mm 2050 x 2850 x 1270 mm
