Features & Specs

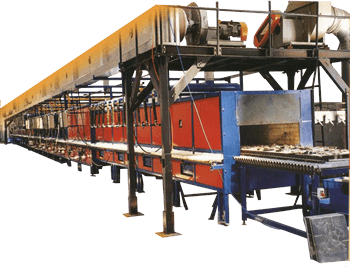

Continuous Roller Hearth Fusing Glass Kiln (GFKF-CT-B)
- Roller Hearth Continuous Glass Fusing Kiln
- Metal Structure Painted With High Temperature Resistant Varnish
- Electric Motorized Elevated Top Cover
- Well Heat Preservation Thermal Insulation
- PLC Temperature Control
- Automatic Production Process From Heating, Fusing, Annealing Till Cooling
- Low Power Consumption While High Production Efficient
Models | GFKF-CT-B-0826 | GFKF-CT-B-1026 | GFKF-CT-B-1032 | GFKF-CT-B-1040 |
Interior Width | 800 mm | 1000 mm | 1000 mm | 1000 mm |
Interior Length | 26 m | 26 m | 32 m | 40 m |
Interior Height | 380 mm | 380 mm | 380 mm | 380 mm |
Install Power | 114 KW | 156 KW | 174 KW | 210 KW |
Voltage | 380 V / 3 phase / 50 Hz | |||
Outer Dimensions (L x W x H) |
30 x 1.1 x 1.4 m | 30 x 1.5 x 1.4 m | 36 x 1.5 x 1.4 m | 44 x 1.5 x 1.4 m |
