Features

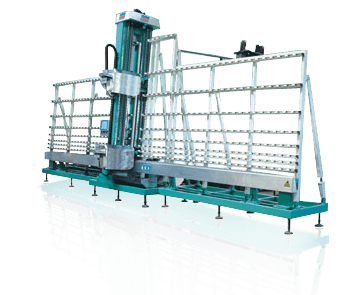

GHD-V-NC-2550-2
- NC numerical control GHD-V-NC2550-2 works with PLC & HMI touch panel operator interface
- Two pairs of drilling spindles double productivity
- Front & rear spindles forward & backward feeding powered by pneumatic
- Drilling holes position is registered automatically
- Drilling spindles move from one to next holes positions automatically
- Process up to 5000 x 2500 mm glass
- Holes positioning accuracy up to ± 0.50 mm
- Concentricity precision of front & rear drills up to ± 0.10 mm
- Drilling spindles up & down movement driven by servo motor
- Glass horizontal traveling driven by servo motor
- Spindles rotational speed regulated by frequency convertor
- Center core drill water cooling
