Spherical Convex Glass & Mirror Cutting Machines (Auto Car Mirror Cutting Machines)

Features

Template-Free Automatic NC Spherical Glass & Mirror Cutting Machine

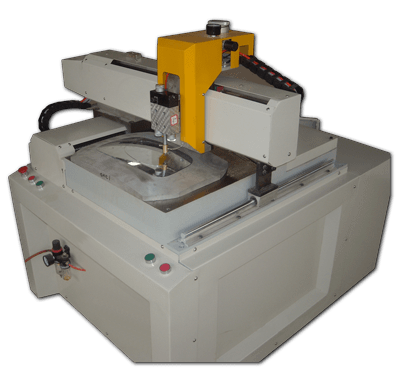

CUT-SC-NC-2 Template-Free Automatic 2-Axis NC Spherical Convex Mirror & Glass Cutting Machine

FEATURES

  • 2-Axis NC Cutting Machine
  • Free of Templates
  • Convex Supporter Required Placing on Cutting Bed
  • Cut Spherical Convex Glass and Mirror
  • Cutting after Glass Bending
  • Cut Various Radius of Curvature
  • Fast & High Productivity
  • Sophisticated Cutting Head Structure
  • Perfect Cutting Junction of Starting & End Point
  • Very Suitable for Cutting of Spherical Glass & Mirror
  • Also Very Suitable for Straight, Round & Shape Cutting on Flat Glass Particularly Thin Glass
  • Optional Flat Glass Cutting Available on Request
Cut Any Shape on Spherical Convex Bent Mirror & Glass Free of Template
Cut Any Shape Free of Template Fixture
CUT-SC-NC-2 Cuts Also Flat Mirror or Glass in Any Shape
CUT-SC-NC-2 Cuts Also Flat Mirror

SPECIFICATIONS

Models CUT-SC-NC-2-500 CUT-SC-NC-2-700 CUT-SC-NC-2-1311 CUT-SC-NC-2-1412
Cutting Bed Size 500 x 500 mm 750 x 750 mm 1300 x 1100 mm 1360 x 1160 mm
Spherical Glass Cutting Max. Cutting Diameter / Diagonal 450 mm 680 mm 1060 mm 1100 mm
Radius of Curvature R1200 ~ R2080 mm R1200 ~ R2080 mm R1200 ~ R2080 mm R1200 ~ R2080 mm
Glass Thickness 1.5 ~ 5.0 mm 1.5 ~ 5.0 mm 1.5 ~ 5.0 mm 1.5 ~ 5.0 mm
Cutting Tolerance ± 0.1 mm ± 0.1 mm ± 0.1 mm ± 0.1 mm
Cutting Speed (depend on perimeter length & shape) 2 ~ 6 sec/pc 2 ~ 6 sec/pc 2 ~ 6 sec/pc 2 ~ 6 sec/pc
Flat Glass Cutting Max. Cutting Size 450 x 450 mm 680 x 680 mm 1250 x 1060 mm 1300 x 1100 mm
Glass Thickness 0.5 ~ 8 mm 0.5 ~ 8 mm 0.5 ~ 8 mm 0.5 ~ 8 mm
Cutting Tolerance ±0.10 mm ±0.10 mm ±0.10 mm ±0.10 mm
Cutting Speed 5 ~ 48 m/min. 5 ~ 48 m/min 5 ~ 48 m/min 5 ~ 48 m/min
Compress Air ≤ 0.5 MPa ≤ 0.5 MPa ≤ 0.5 MPa ≤ 0.5 MPa
Power 2.5 KW 2.5 KW 3 KW 3 KW
Voltage 220V / Single Phase / 50Hz
Outer Dimensions (L x W x H) (mm) 1300 x 1300 x 1500 1300 x 1300 x 1500 2300 x 1850 x 1500 2300 x 1900 x 1500
