Automatic Glass Cutting Machines
for Large & Jumbo Glass

Models CUT-
AUTO-A
-L1A		 CUT-
AUTO-A
-L1B		 CUT-
AUTO-A
-L2A		 CUT-
AUTO-A
-L2B		 CUT-
AUTO-A
-L3A		 CUT-
AUTO-A
-L3B		 CUT-
AUTO-A
-L3C
Layouts L1A

L1A		 L1B

L1B		 L2A

L2A		 L2B

L2B		 L3A

L3A		 L3B

L3B		 L3C

L3C
Automatic Loading Machine No No No No Single Side with a L-Rack Double Sides with Two L-Racks Single Side with Rotating Glass A-Rack
Cutting Machine Fix Table with Tilted Arms & Breakout Bars Tilting Table with Breakout Bars Fix Table with Tilted Arms Tilting Table Fix Table with Belt Conveyors Fix Table with Belt Conveyor Fix Table with Belt Conveyor
Breakout Table No No Yes Yes Yes Yes Yes
Max. Glass Sizes 2500 x 3700 mm  /  3100 x 6000 mm

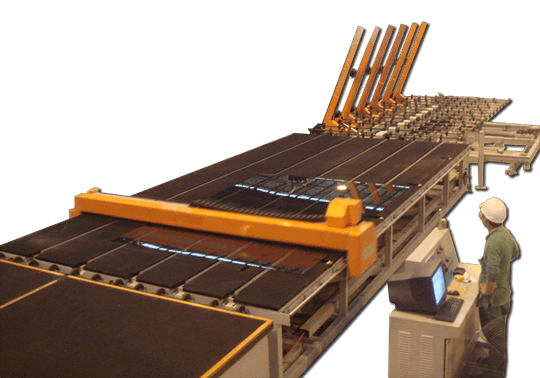

Automatic Glass Cutting Machines for Large & Jumbo Glass

Automatic Glass Cutting Machines with Whole Width Conveyor Belt Table

Automatic Glass Cutting Machines with Whole Width Conveyor Belt Table
  • Full width Conveyor Belt Table
  • Conveyor Belt Brings Glass in & out of Table
  • X-, Y- & Z-Axes AC Servo Motors & Drivers
  • Up to 90m/min. Cutting Speed
  • Integrated PLC
  • Could incorporate with Upstream Automatic Loading Machine & Downstream Breakout, Grinding & Washing Machines
  • Suitable for Mass Production such as Automotive Glass
  • Available in Two Sizes, 800 x 1830 mm & 1200 x 2250 mm

Automatic Glass Cutting Machines for Small & Medium Glass

Automatic Glass Cutting Machines for Small & Medium Glass
  • X-, Y- & Z-Axes AC Servo Motors & Drivers
  • Up to 30m/min. Cutting Speed
  • Integrated PLC
  • Available Maximum Glass Sizes from 400 x 550mm to 1200 x 1700mm in Four Models
