Automatic Glass Cutting Machines

Features & Specs

CUT-AUTO-C

Automatic Glass Cutting Machines for Small & Medium Glass

Features

CUT-AUTO-C
  • Automatic Precise Shape & Straight Cutting of Glass
  • Heavy Duty Electro welded Tubular Steel Structure with Anti-Rust Painting
  • X-, Y-, Z-Axes AC Servo Motors with Drivers
  • Sophisticated Planetary Gear Reducers
  • Precise Abrasive Proof Pinion & Rack
  • User Friendly Operator Interface
  • Air Floating Cutting Table covered by Smooth Durable Felt
  • Tilted Arms for Easy & Fast Glass Loading
  • Built-in Breakout Bars
  • Automatic Cutting Wheel Lubricant Feeding
  • Optimization Software Minimizes Cutting Wastage

Specifications

Models CUT-AUTO-C-0405 CUT-AUTO-C-0707 CUT-AUTO-C-1112 CUT-AUTO-C-1217
Max. Glass Size 400 x 550 mm 700 x 700 mm 1100 x 1200 mm 1200 x 1700 mm
Glass Thickness 1 ~ 12 mm 1 ~ 12 mm 1 ~ 12 mm 1 ~ 12 mm
Cutting Speed Max. 30 m/min Max. 30 m/min. Max. 30 m/min. Max. 30 m/min.
Parallel Cutting Accuracy ± 0.1 ± 0.1 ± 0.1 ± 0.1
Diagonal Cutting Accuracy ± 0.2 ± 0.2 ± 0.2 ± 0.2
Voltage 380V / 3 phase / 50Hz

Options

Glass Loading

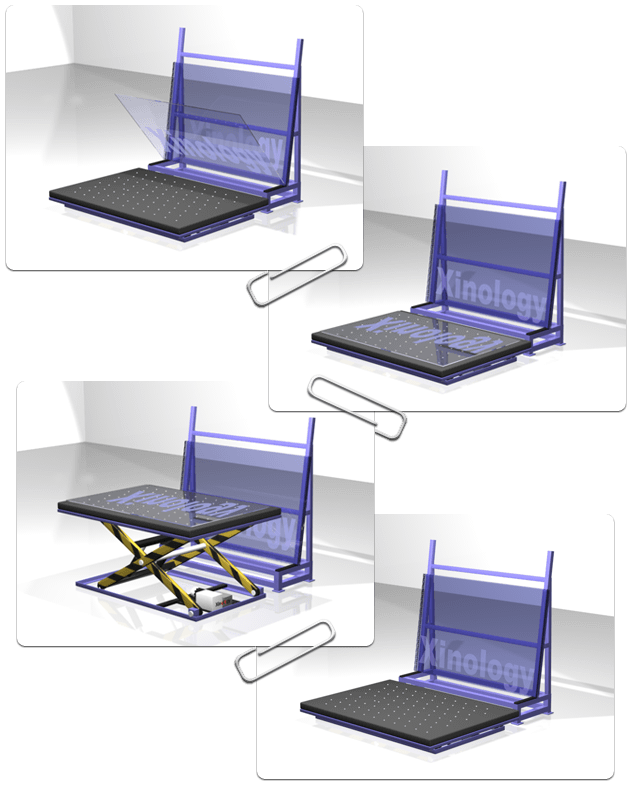

Elevated Air Floatation Free Fall Table Minimizes Labor Force at Lowest Possible Capital Investment

Tilted arms are incorporated to glass cutting machine so that glass is easily loaded and unloaded. Min. glass thickness within those areas lies above tilted arms shall be revised from 1mm to 2mm when this option is selected.

Glass Breakout

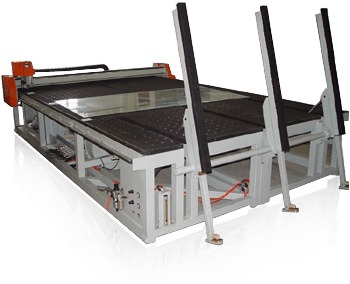

Individual Air Floatation Glass Breakout Table (without Tilted Arms) Located Right Next to Cutting Machine

Individual Air Floatation Glass Breakout Table (with Tilted Arms) Located Right Next to Cutting Machine
