Features & Specs
CUT-AUTO-A-L3A

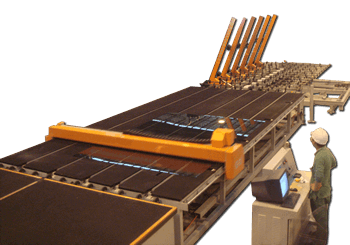

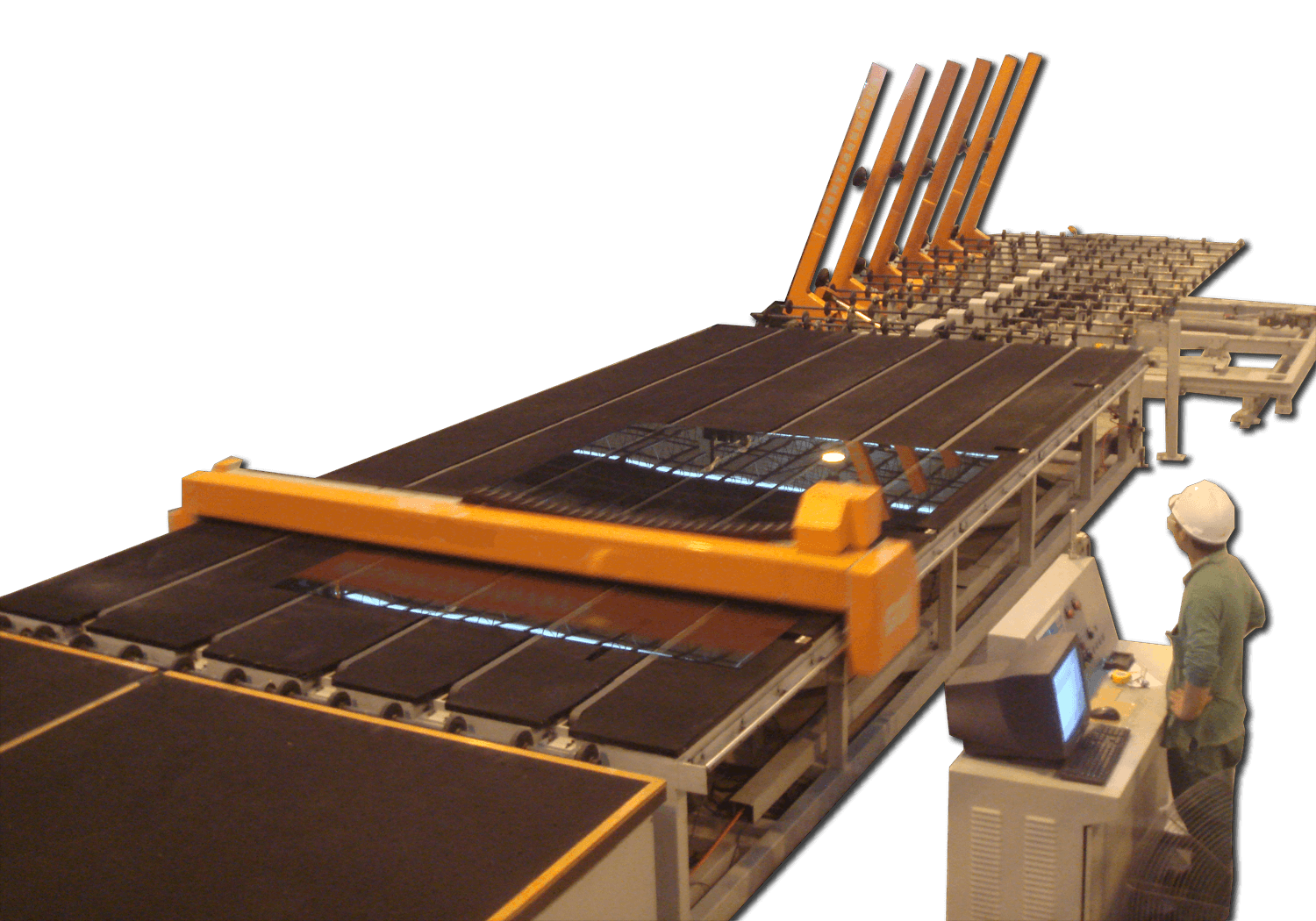

Automatic Glass Cutting Machines for Large & Jumbo Glass
Features
- Automatic Precise Shape & Straight Cutting of Glass

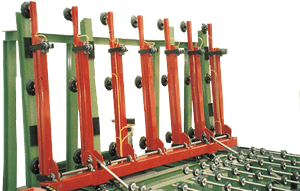

- Automatic Single Side Glass Loading Machine with Vacuum Suction Cups
- Individual Air Floating Breakout Table
- Heavy Duty Electro welded Tubular Steel Structure with Anti-Rust Painting
- X-, Y-, Z-Axes AC Servo Motors with Drivers
- User Friendly Operator Interface
- Automatic Conveyor Belts Bring Glass in & out of Cutting Machine
- Air Floating Cutting Table covered by Smooth Durable Felt
- Automatic Cutting Wheel Lubricant Feeding
- Optimization Software Minimizes Cutting Wastage
Specifications
 |
||
| Models | CUT-AUTO-A-L3A-2537 | CUT-AUTO-A-L3A-3160 |
| Max. Glass Size | 2500 x 3700 mm | 3100 x 6000 mm |
| Glass Thickness | 3 ~ 19 mm | 3 ~ 19 mm |
| Cutting Speed | Max. 120 m/min. | Max. 120 m/min. |
| Cutting Tolerance | ±0.25 / 2000mm | ±0.25 / 2000mm |
| Power | 23 KW | 27 KW |
| Voltage | 380V / 3 phases / 50Hz | 380V / 3 phases / 50Hz |
| Outer Dimensions (L x W x H) | 13200 x 3800 x 920 mm | 21200 x 4100 x 920 mm |
