Automatic Glass Cutting Machines

Features & Specs

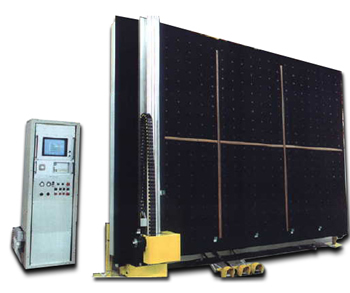

CUT-AUTO-A-L1B

Automatic Glass Cutting Machines for Large & Jumbo Glass

  • Features
  • Specifications

Features

CUT-AUTO-A-L1B
  • Automatic Precise Shape & Straight Cutting of Glass
  • Tilting Cutting Table for Easy & Fast Glass Loading
  • Heavy Duty Electro welded Tubular Steel Structure with Anti-Rust Painting
  • X-, Y-, Z-Axes AC Servo Motors with Drivers
  • User Friendly Operator Interface
  • Air Floating Cutting Table covered by Smooth Durable Felt
  • Built-in Breakout Bars
  • Automatic Cutting Wheel Lubricant Feeding
  • Optimization Software Minimizes Cutting Wastage

Specifications

CUT-AUTO-A-L1B
Models CUT-AUTO-A-L1B-2537 CUT-AUTO-A-L1B-3160
Max. Glass Size 2500 x 3700 mm 3100 x 6000 mm
Glass Thickness 2 ~ 19 mm 3 ~ 19 mm
Cutting Speed Max. 120 m/min. Max. 120 m/min.
Cutting Tolerance ±0.25 / 2000mm ±0.25 / 2000mm
Power 9 KW 10 KW
Voltage 380V / 3 phases / 50Hz 380V / 3 phases / 50Hz
Outer Dimensions (L x W x H) 4900 x 3100 x 920 mm 7100 x 4100 x 920 mm
