Features & Specs

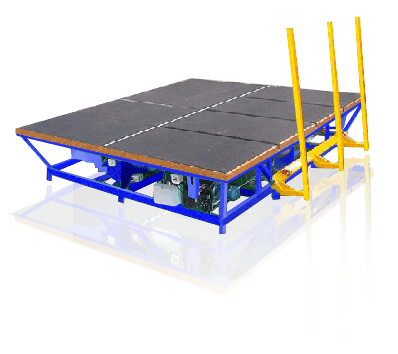

Air Floatation Glass Breakout Table with Tilting Arms
- Series GH-FT-B is Made of Sturdy Welded Tubular Steel Structure Painted with Top Quality Varnish
- Strong Tilting Arms Activated by Robust Cylinders
- Compact Air Blower Beneath Table
- Moved Freely on Table
- Distortion Free Table Top
- Powerful Air Floatation Allowing Glass Table Top Covered by Non Scratch Durable Thick Felt
- Shock Free Tilting Arms Motions Especially When Approaching Horizontal Position
Models | GH-FT-B-1020 | GH-FT-B-1525 | GH-FT-B-2030 | GH-FT-B-2537 | GH-FT-B-3361 |
Max. Glass Size (mm) | 1000 x 2000 | 1500 x 2500 | 2000 x 3000 | 2500 x 3700 | 3300 x 6100 |
Breakout Bars | 1 Traverse & 1 Longitudinal | 1 Traverse & 1 Longitudinal | 2 Traverse & 1 Longitudinal | 2 Traverse & 1 Longitudinal | 2 Traverse & 1 Longitudinal |
Working Height(mm) | 900 | 900 | 900 | 900 | 900 |
Max. Glass Loading (kg) | 100 | 160 | 300 | 400 | 900 |
Tilting By | Pneumatic | Pneumatic | Hydraulic | Hydraulic | Hydraulic |
Compress Air Consumption (Lt/min.) | 180 | 200 | 250 | 300 | 400 |
Compress Air Pressure (MPa) | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 |
Power (KW) | 1.5 | 2 | 4 | 5.1 | 11.5 |
Weight (kg) | 200 | 300 | 600 | 900 | 2000 |
Outer Dimensions (LxWxH) (m) | 2.1 x 1 x 0.9 | 2.6 x 1.5 x 0.9 | 3.1 x 2 x 0.9 | 3.7 x 2.5 x 0.9 | 3.3 x 6.1 x 0.9 |
