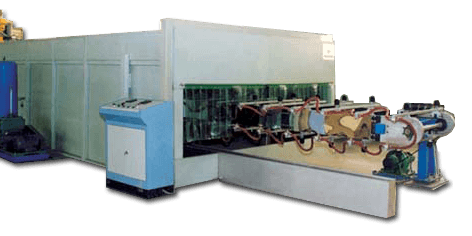

Pre-Heating & Vacuum Conveyor Oven (Glass Travels Horizontally)

PLC Conveyor Design Heating & Vacuum Oven for Mass Production
Hot Air Convection Heating
Glass Travels Long Edge Leading Horizontally
Consists of Oven Body, Glass Conveyor, Rubber Rings Returning Conveyor, Vacuum System, Heating System & Control System
Stable Chain Conveyor Carries Glass Consistently
Frequency Converter Infinitely Regulate Glass Travel Speed
Well Assembled Laminated Glass with PVB Films Loaded on Conveyor
Hoses of Silicon Rubber Rings Connected to Vacuum Pipes Inside Oven
Vacuuming Evacuates Air Trapped Between Two Pieces of Glass by Means of Silicon Rings
Glass Edges Well Sealed with Pre-Melting & Pre-Bonding between Glass & PVB Film
Well Thermal Insulation Materials of Oven Body Minimizes Heat Loss
Automatic Heating Control
Rubber Rings Returning Conveyor Brings Vacuum Ring back to Assembly Room for Recycling Saves Labor Force

Models	LGVH-B-H-1500	LGVH-B-H-2000	LGVH-B-H-2500	LGVH-B-H-2800
Max. Glass Width	1500 mm	2000 mm	2500 mm	2800 mm
Max. Temperature	140℃	140℃	140℃	140℃
Productivity (Depends on Glass Length)	120 ~ 180 pcs/8 hrs	120 ~ 180 pcs/8 hrs	120 ~ 180 pcs/8 hrs	120 ~ 180 pcs/8 hrs
Total Power	60 KW	65 KW	70 KW	75 KW
Outer Dimensions (LxWxH)	12 x 2 x 2 m	12 x 2.5 x 2 m	12 x 3 x 2 m	12 x 3.3 x 2 m
