Glass Laminated Windshield Production Line

Assembly

Introduction

It is a conveyor line where following procedures are carried out,

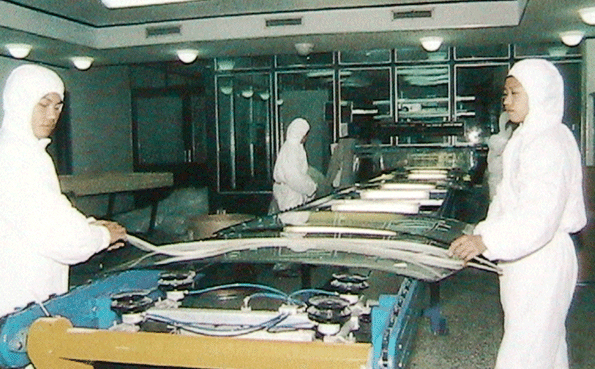

Windshield or Curve Laminated Glass PVB Assembly Line
  • Power Removed
  • Assemble PVB Interlayer in between Two Pieces of Glass
  • Trimming of Excess PVB Film around Glass Edges
  • Wrap Silicon Rubber Rings around Glass Rim

The assembly conveyor is usually installed in a climatic control room where temperature and humidity are controlled. The longer is conveyor length, the higher is the productivity. The assembly conveyor could be incorporated in line with subsequent pre-heating and vacuum conveyor oven. This design minimizes glass handling to the least labor force while for continuous mass production.

PVB Assembly Line inline with Subsequent Pre-Heating & Vacuum Oven Conveyor Minimizes Glass Handling

PVB Assembly Line inline with Subsequent Pre-Heating & Vacuum Oven Conveyor Minimizes Glass Handling Labour Force for Non-Interrupted Mass Production
