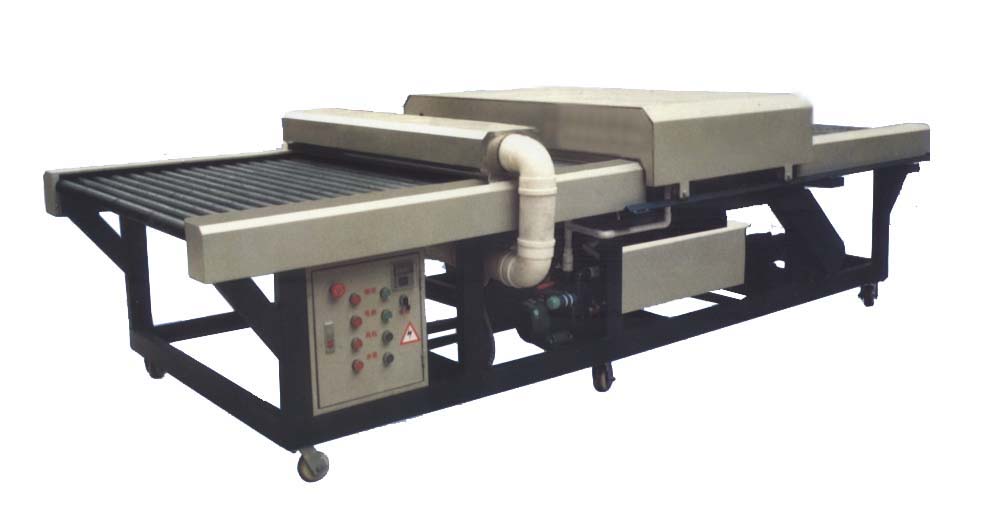

Horizontal Glass Washing Machine
Technical Specification

The washing machine is used as a special hardware to wash and dry automatically the glass before using the flat glass to produce the furniture, mirror, coated glass, tempered glass, bent glass, laminated glass and so on. The machine is mainly composed by driving system, washing system, drying system, electric control system.

The series of HW horizontal washing machine adopt the horizontal rollers to convey, the speed can be adjusted. Temperature controller adjusts the blower temperature. The features of the machine are excellent washing procedure, reasonable mechanism, easy to control, high quality of washing, low cost of washing. Furthermore, we will try our best to satisfy our customer according to the special requirement of customer.

MODEL

HW-400

HW-600

HW-800

HW-1000

HW-1200

HW-1600

HW-2000

HW-2500

Max width of glass size (mm)

300

500

700

900

1100

1500

1900

2400

Min glass (mm)

80 x 50

80 x 50

80 x 50

160 x 50

160 x 50

180 x 100

300 x 100

300 x 100

Glass thickness (mm)

2 - 6

2 - 6

2 - 6

2 - 6

2 - 8

2 - 12

2 - 12

2 - 12

Speed (m/min)

2 ?C 6

Cylindrical brush

3

3

3

3

3

3

3

4

Sponge roller

3

3

3

3

3

2

2

2

Working height (mm)

800

800

800

800

800

850

850

850

Power (kW)

18

18

18

18

20

20

20

20

Outer dimension (mm)

2400 x 600 x 110

2600 x 800 x 1100

2800 x 1000 x 1100

3000 x 1200 x 1100

4200 x 2000 x 1200

4200 x 2000 x 1200

6000 x 2400 x 1300

6010 x 3000 x1300

Weight (kg)

700

800

1000

1100

1200

1500

2000

2500

Option

1. Those areas contact with water are stainless steel
2. 2-19mm thick glass washing (Suitable for HW-1200, HW-1600, HW-2000, HW-2500)
3. Acid pre-washing

Remark

1. Custom design is on request.
2. All data and information listed in this document is subject to final confirmation.
