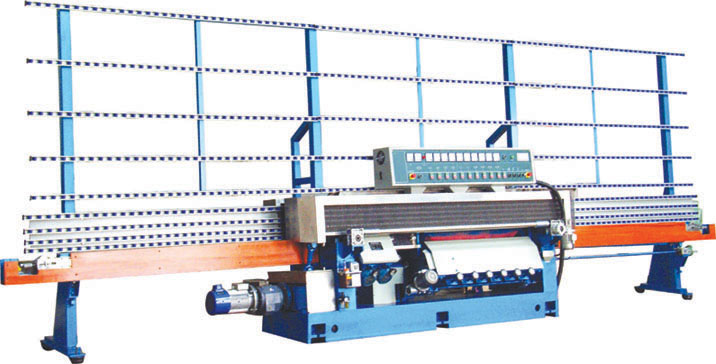

Power
supply: |
3-Phase,
380 / 220V, 50 / 60 Hz |
| Total
installed power: |
20.15
kW. |
| Glass
processing range: |
Glass
Thickness: From 3 mm to 30 mm |
|
Min.
Glass width: 50mm |
|
Angle
changing range: 90°- 45° |
|
Max.
Weight: 700kg |
| Processed
profile: |
Angle
Changing Flat edge and arrises |
| Glass
feeding speed: |
0.
5m/min-5.0 m/min |
| Input
/ Output conveyor: |
Timing
belts |
| Grinding
amount adjustment: |
Manual
adjustment the inverter frequency adjuster
on the controlled panel and speed displayed. |
| Front
and rear conveyor: |
No
chain, bearing type |
| Thickness
adjustment and Angle Changing: |
PLC
automatically controlled AC motor with
encoder and displayed |
| Glass
feeding speed adjustment: |
Manual
adjustment the inverter frequency adjuster
on the controlled panel and speed displayed |
| Wheels configuration: |
| All wheels are Cup
shape with I.D.ф50mm, all motors are AC type (ABB motor) |
| Wheel number |
Type |
Diameter |
Grain size |
Power |
| Pos.1. |
Diamond O.D. |
ф150mm |
grain size #100 |
2.2kW for angle
changing flat edge |
| Pos.2 |
Diamond O.D |
ф150mm |
grain size #240 |
1.75kW for angle
changing flat edge |
| Pos.3 |
Resin O.D |
ф150mm |
grain size #240 |
1.75kW for angle
changing flat edge |
| Pos.4 |
Resin O.D |
ф150mm |
grain size #320 |
1.75kW for angle
changing flat edge |
| Pos.5 |
Polishing O.D |
ф150mm |
10S40 |
1.75kW for angle
changing flat edge |
| Pos.6 |
Polishing O.D |
ф150mm |
CE3 |
1.5kW for angle
changing flat edge |
| Pos.7 |
Resin O.D |
ф130mm |
grain size #180 |
1.75 kW for rear
arris |
| Pos.8 |
Resin O.D |
ф130mm |
10S40 |
1.75kW for rear
arris |
| Pos.9 |
Resin O.D |
ф130mm |
grain size #180 |
1.5kW for front
arris |
| Pos.10 |
Polishing O.D |
ф130mm |
10S40 |
1.75kW for front
arris |
| Water pump: |
AC motors 0.25 kW |
| Operating method: |
Continuous running and manual feeding |
| Overall dimensions: |
8100 x 1200 x 2800mm |
| Total weight: |
4500kg |
|
|
|
|
|
|
|
