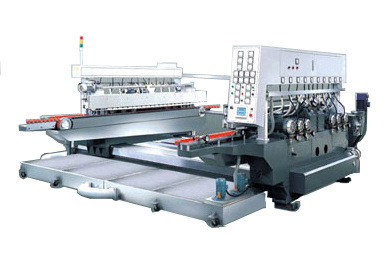

Model Number: GU-D2522
|
|
1.
Power supply: 3-Phase, Voltage: 380V/220V,
Frequency: 50/60Hz, as required
Total installed power: 44kW
2. Grinding spindles: Each side 10 Spindles+1
Corner cut
3. Glass processing range: Glass Thickness:
4mm-25mm
Min glass width: 300mm
Max glass width: 2600mm
Max flat edge grinding amount: 5mm
4. Processed profile: Two parallel flat
edge and arrises with corner cut
5. Glass feeding speed: 0.5m/min-5m/mm (By
using Inverter)
6. Glass thickness adjustment: Manual and
Automatic mode
7. Glass width adjustment: Manual and Automatic
mode
8. Grinding precision:
Width precision<0.5mm
Diagonal precision<±0.5mm
9. Man-machine monitor: PLC controls the
machine and display width, thickness, feeding
speed and grinding quantity.
10. Wheel and grinding motor configuration:
All flat edge wheels are cup shape with
Inner diameter 50mm and Outer diameter 150mm.
Position 1 flat edge grinding motor is 3
kW, the other flat edge grinding motors
are 2.2 kW (ABB Motor).
All arris wheels are cup shape with Inner
diameter 50mm and Outer diameter 130mm and
arris grinding motors are 1.75 kW (ABB Motor).
Corner cut is peripheral wheel with Inner
diameter 18mm and Outer diameter 50mm and
grinding motor is 0.17 kW.
11. Water pump: AC motor 1.5 kW 2 sets
12. Operating method: Continuous running
and manual feeding
13. Overall dimension: 4500mm x 4400mm x
2000mm (Including water tank)
14. Machine consisted: Main machine body
with double rail and double ball guide screw,
fixed base and movement base, transmit device,
clip device, main driving device, grinding
and polishing device, electronic and controlled
system, cooling system, air-knife system,
input and output rack, positional system,
lubrication system
|
|
| |
|
|
